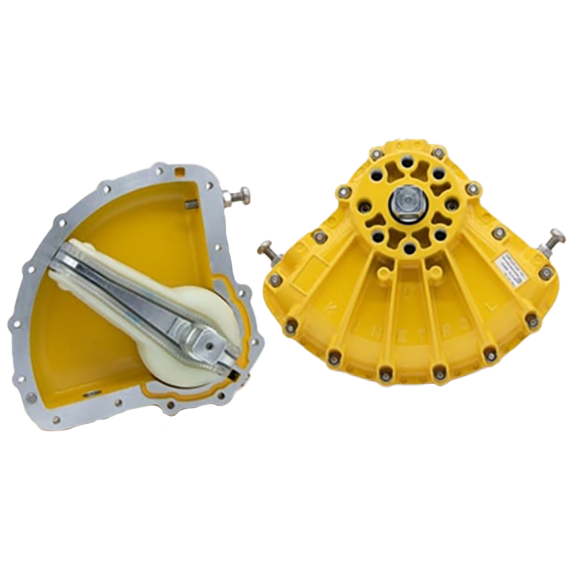

Single Moving Part With No Cranks or Gearing

Kinetrol’s quarter-turn design offers automation of ball valves, butterfly valves, plug valves, triple offset valves, control valves, & dampers. Options include fire fail-safe spring units, stainless steel housings, and food-grade finish housings.



Kinetrol actuators feature an outstanding cycle life, smooth and precise movement, and environmentally rugged design.

  • Most pneumatic actuators convert linear thrust to rotary torque. Kinetrol is a true rotary actuator with only one moving part & can be used on equipment that rotates up to 180 degrees.
  • A separate clock-wound spring, sealed from the surrounding environment, is mounted to the actuator for fail-safe applications.
  • Actuators are guaranteed up to four million cycles.
  • Kinetrol is utilized in pulp and paper, power generation, steel, mining, lithium value chain, chemical, fibers, petrochemical, food and beverage, pharmaceutical, & industrial water treatment.

Kinetrol Rotary Vane Actuators General Overview

Play Video

Kinetrol Actuator Vane Design Overview

Play Video

Why Do Kinetrol Actuators Last So Long?

Play Video

Kinetrol Blueline Actuators for Food & Beverage Production

Play Video

Features

  • Torque outputs up to 356977 lbf ins (40765 Nm).
  • A single moving part.
  • Compact size combined with high torque output.
  • Easy double-acting to spring-return conversion.
  • Very accurate modulation for quarter-turn control valves.
  • Dual-opposed, low friction lip seals for extremely long life.
  • Totally enclosed spring housing, not exposed to corrosive atmospheres.
  • No pressure retaining shaft seals or O-Rings.
  • Fast operation with large ports and no air restrictions.
  • 80-100 deg. rotation standard, adjustable and fixed.
