AMS Trex Device Communicator

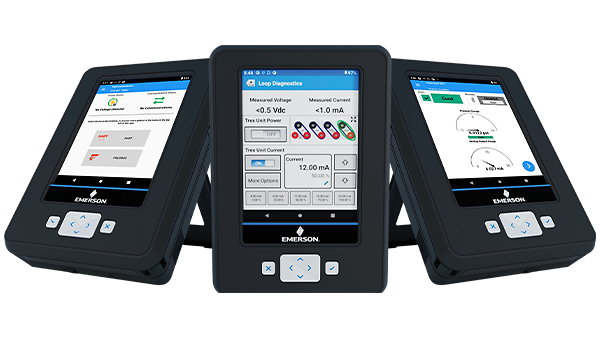

The Next Generation of AMS Trex Is Here

The Next Generation of AMS Trex Is Here

Building on three decades of expertise in handhelds and intelligent field device management, AMS Trex continues to deliver the trusted human-centered handheld device communicator, rugged form factor, long-lasting battery life, and global “go-anywhere” safety certifications users rely on to commission, configure, diagnose and troubleshoot more than 2500 field devices.

The latest version of the industry's leading field device communicator has been redesigned to operate on a modern, faster platform with improved accuracy and device connectivity including embedded Bluetooth® technology to improve productivity and safety of field maintenance engineers and technicians.

AMS Trex Device Communicator

Specs

Weight
Approximately 2.9 lbs (1330 grams)
Microprocessor
1.2 GHz quad-core Cortex-A53 / NXP i.MX 8M Mini
Memory Internal Flash
64 GB NAND flash
RAM
4 GB LPDDR4 SDRAM
Display
5.7 in (14.5 cm) color VGA resistive touchscreen
Battery Operating Time
8+ hours of typical use
Operating Temperature
-20 to 55°C (-4 to 122°F)
Enclosure Rating
IP54
Shock
Tested to survive a 1-meter drop test onto concrete
Calibration
NIST-Traceability of AMS Trex 2 Device Communication Plus Module mA current functions

Features

  • Eliminate the need for specialized tools with power the loop functionality
  • Quickly resolve field devices issues with advanced diagnostics
  • Configure and test valves inline
  • Improve efficiency with a modern, intuitive user interface
  • Intrinsically safe to go anywhere you go
  • Automatically synchronize field data with AMS Device Manager
  • Increase Maintenance productivity and ensure safety with seamless connectivity to Bluetooth® devices
  • Perform loop checks and diagnose 4-20mA loops
